Tutorial - Docker Setup with Insomnia REST client
In this tutorial we will show you how to setup the Data Collection Application Function (DCAF) with Docker and use its REST API with the Insomnia REST client.
Requirements
To follow this tutorial you need to have Docker installed on your machine. You can download Docker from here. In addition, you will need the Insomnia REST client that can be downloaded from here.
DCAF Setup
Downloading
First we need to clone the repository of the Data Collection Application Function. Open a terminal and run:
git clone --recurse-submodules https://github.com/5G-MAG/rt-data-collection-application-function.git
Starting the Docker Containers
Now that we have the source code of the Data Collection Application Function, we can build the Docker images and start the Docker containers. For that reason, we navigate to the root directory of the repository and build the Docker containers:
cd rt-data-collection-application-function/docker/local
docker compose up

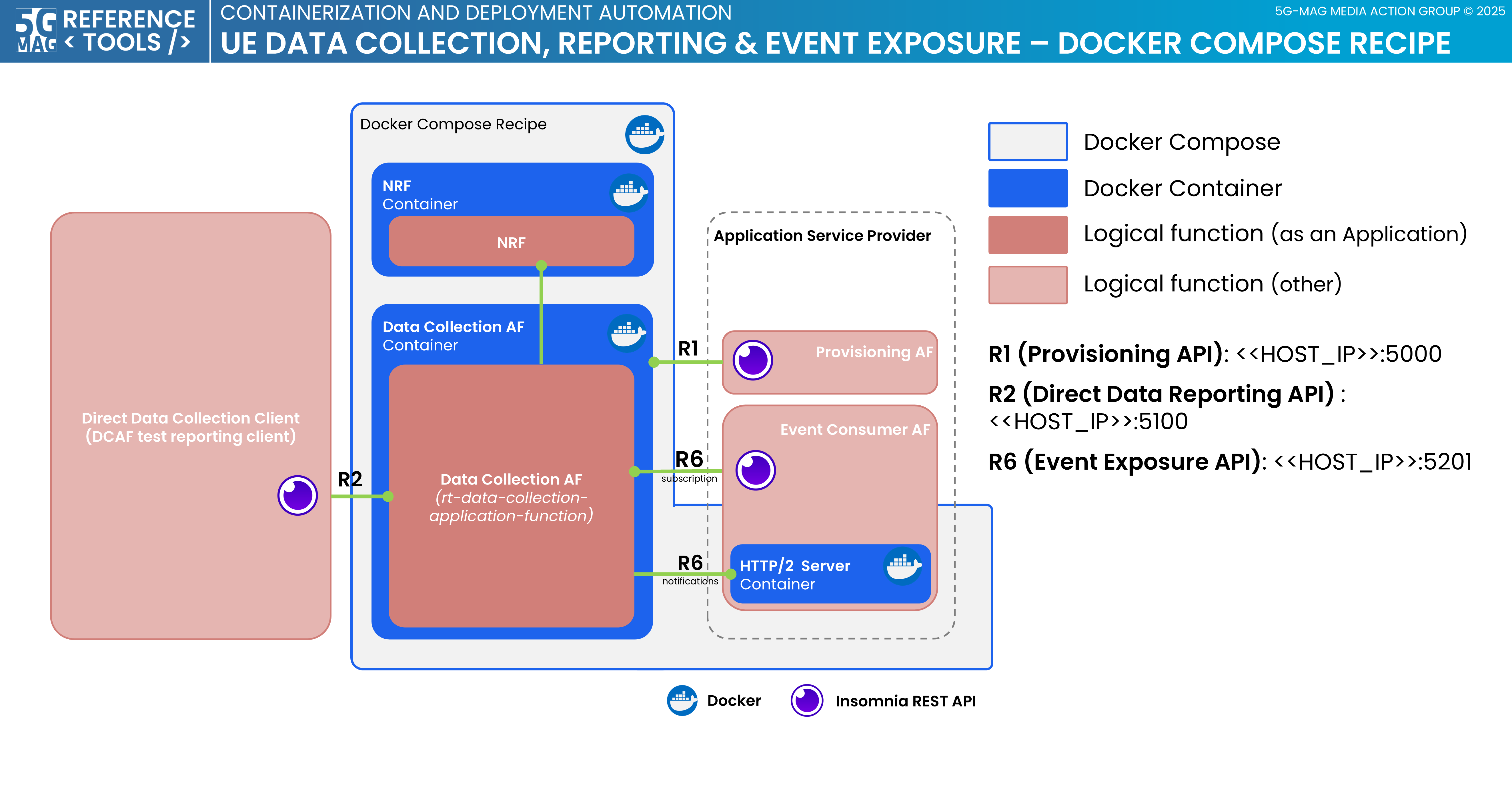

This will start three Docker containers:
nrf: A 5G Core NRF Network Function for the Application Function to register with.dcaf: The Data Collection Application Function that exposes multiple REST APIs to interact with. We will use these APIs later with the Insomnia REST client.h2-server: A fully-functional HTTP/2 server to handle data that is provided by the DCAF as a response to event. subscriptions.
Building the Docker containers may take a while. Once the containers are up and running, we can access the REST APIs exposed by the Data Collection Application Function. For that reason, the ports of the dcaf container are mapped to the corresponding ports on the host machine:
dcaf:
ports:
- "5000:5000"
- "5100:5100"
- "5101:5101"
- "5102:5102"
- "5200:5200"
- "5201:5201"
If you run into any issues with ports already being in use, you can change the port mappings in the docker-compose.yml. Note that you also need to change the corresponding Insomnia environment variables then (see Insomnia Setup below).
Once the Docker containers are running you should see an output like this:
✔ Network reftools_5g-mag_data-collection-af-local_default Created 0.0s
✔ Container reftools_5g-mag_data-collection-af-local-nrf-1 Created 0.0s
✔ Container reftools_5g-mag_data-collection-af-local-h2-server-1 Created 0.0s
✔ Container reftools_5g-mag_data-collection-af-local-dcaf-1 Created 0.0s
Attaching to dcaf-1, h2-server-1, nrf-1
nrf-1 | Open5GS daemon v2.7.2
nrf-1 |
nrf-1 | 03/25 13:09:37.843: [app] INFO: Configuration: '/etc/open5gs/default/nrf.yaml' (../lib/app/ogs-init.c:133)
nrf-1 | 03/25 13:09:37.843: [app] INFO: File Logging: '/open5gs/install/var/log/open5gs/nrf.log' (../lib/app/ogs-init.c:136)
nrf-1 | 03/25 13:09:37.845: [sbi] INFO: nghttp2_server() [http://0.0.0.0]:7777 (../lib/sbi/nghttp2-server.c:424)
nrf-1 | 03/25 13:09:37.845: [app] INFO: NRF initialize...done (../src/nrf/app.c:31)
dcaf-1 | Open5GS daemon v2.6.4-10-gb9dd812
dcaf-1 |
dcaf-1 | 03/25 13:09:37.972: [app] INFO: Configuration: '/etc/open5gs/dcaf.yaml' (../subprojects/open5gs/lib/app/ogs-init.c:126)
dcaf-1 | 03/25 13:09:37.972: [app] INFO: File Logging: '/home/ubuntu/af/open5gs/build/log/data-collection.log' (../subprojects/open5gs/lib/app/ogs-init.c:129)
dcaf-1 | 03/25 13:09:37.974: [app] INFO: LOG-LEVEL: 'info' (../subprojects/open5gs/lib/app/ogs-init.c:132)
dcaf-1 | 03/25 13:09:37.977: [DCAF] INFO: Initialising library:
dcaf-1 | Library Version: [libspdc-1.0.0]
dcaf-1 | Version [1.0.0]
dcaf-1 | Major: [0],
dcaf-1 | Minor [1]
dcaf-1 | Micro: [0]
dcaf-1 | (../src/data-collection-af/init.c:105)
dcaf-1 | 03/25 13:09:37.979: [data-collection-service-producer] INFO: Registering Data Collection Service [3gpp-ndcaf_data-reporting-provisioning] (../lib/data-collection-service-provider/data-collection-nf-service.c:67)
dcaf-1 | 03/25 13:09:37.980: [data-collection-service-producer] INFO: Registering Data Collection Service [3gpp-ndcaf_data-reporting] (../lib/data-collection-service-provider/data-collection-nf-service.c:67)
dcaf-1 | 03/25 13:09:37.980: [data-collection-service-producer] INFO: Registering Data Collection Service [naf-eventexposure] (../lib/data-collection-service-provider/data-collection-nf-service.c:67)
dcaf-1 | 03/25 13:09:37.981: [sbi] INFO: nghttp2_server() [http://127.0.0.1]:7777 (../subprojects/open5gs/lib/sbi/nghttp2-server.c:395)
dcaf-1 | 03/25 13:09:37.982: [sbi] INFO: nghttp2_server() [http://0.0.0.0]:5000 (../subprojects/open5gs/lib/sbi/nghttp2-server.c:395)
dcaf-1 | 03/25 13:09:37.982: [sbi] INFO: nghttp2_server() [http://0.0.0.0]:5102 (../subprojects/open5gs/lib/sbi/nghttp2-server.c:395)
dcaf-1 | 03/25 13:09:37.982: [sbi] INFO: nghttp2_server() [http://0.0.0.0]:5100 (../subprojects/open5gs/lib/sbi/nghttp2-server.c:395)
nrf-1 | 03/25 13:09:37.986: [sbi] INFO: NF EndPoint(fqdn) setup [dcaf:0] (../lib/sbi/context.c:2195)
dcaf-1 | 03/25 13:09:37.983: [sbi] INFO: nghttp2_server() [http://0.0.0.0]:5101 (../subprojects/open5gs/lib/sbi/nghttp2-server.c:395)
nrf-1 | 03/25 13:09:37.986: [sbi] INFO: NF EndPoint(addr) setup [127.0.0.1:80] (../lib/sbi/context.c:2195)
dcaf-1 | 03/25 13:09:37.983: [sbi] INFO: nghttp2_server() [http://0.0.0.0]:5201 (../subprojects/open5gs/lib/sbi/nghttp2-server.c:395)
nrf-1 | 03/25 13:09:37.986: [sbi] INFO: NF EndPoint(addr) setup [0.0.0.0:5000] (../lib/sbi/context.c:1934)
dcaf-1 | 03/25 13:09:37.984: [sbi] INFO: nghttp2_server() [http://0.0.0.0]:5200 (../subprojects/open5gs/lib/sbi/nghttp2-server.c:395)
nrf-1 | 03/25 13:09:37.986: [sbi] INFO: NF EndPoint(addr) setup [0.0.0.0:5100] (../lib/sbi/context.c:1934)
dcaf-1 | 03/25 13:09:37.985: [app] INFO: 5G Data Collection AF initialize...done (../src/data-collection-af/app.c:23)
nrf-1 | 03/25 13:09:37.987: [sbi] INFO: NF EndPoint(addr) setup [0.0.0.0:5201] (../lib/sbi/context.c:1934)
dcaf-1 | 03/25 13:09:37.985: [DCAF] INFO: [67bfc656-097a-41f0-9047-3b8b76ef7fa1] DCAF Running (../src/data-collection-af/dcaf-sm.c:61)
nrf-1 | 03/25 13:09:37.987: [nrf] INFO: [67bfc656-097a-41f0-9047-3b8b76ef7fa1] NF registered [Heartbeat:10s] (../src/nrf/nf-sm.c:202)
dcaf-1 | 03/25 13:09:37.987: [sbi] INFO: [67bfc656-097a-41f0-9047-3b8b76ef7fa1] NF registered [Heartbeat:10s] (../subprojects/open5gs/lib/sbi/nf-sm.c:214)
Insomnia Setup
Now that the Docker containers are up and running, we need to setup the Insomnia REST client.
Pre-Configuration
The DCAF requires the HTTP version to be set to HTTP/2 PriorKnowledge for incoming requests. To set this up in Insomnia, navigate to Settings and change Preferred HTTP version to HTTP/2 PriorKnowledge.
Importing the Workspace
For your convenience, we have prepared an Insomnia workspace that you can import. You can download the workspace from here.
Once you downloaded the file click on import in the Insomnia REST client and select the downloaded file. This will import the required HTTP requests and the environment variables. You should then see the 5GMAG-DCAF collection in the center of the Insomnia window:
Now select the 5GMAG-DCAF collection and you will see the available HTTP requests on the left side of Insomnia.
If you need to change the environment variables, you can do so by clicking on 5G-MAG DCAF in the top left corner next to the globe symbol and select the edit icon next to Collection Environments. Then you can edit the environment variables.
Note that the Insomnia collection ships with multiple After-Responses scripts that set the environment variables based on the payload or the headers of the HTTP response. As an example, the provisioningSessionId is automatically set after creating a new Data Reporting Provisioning Session:
const response = insomnia.response.json();
const provisioningSessionId = response.provisioningSessionId;
insomnia.environment.set("provisioning_session_id", provisioningSessionId);
Using the REST APIs
Now that all components are running and our Insomnia workspace is setup, we can start using the REST APIs of the DCAF. In this tutorial we will follow these steps:
Start-Up phase
At start-up, the DCAF registers with the NRF and starts the HTTP/2 server. This is done automatically and does not require any user interaction.
In the logs you will find the following lines:
nrf-1 | 03/25 13:09:37.987: [nrf] INFO: [67bfc656-097a-41f0-9047-3b8b76ef7fa1] NF registered [Heartbeat:10s] (../src/nrf/nf-sm.c:202)
dcaf-1 | 03/25 13:09:37.987: [sbi] INFO: [67bfc656-097a-41f0-9047-3b8b76ef7fa1] NF registered [Heartbeat:10s] (../subprojects/open5gs/lib/sbi/nf-sm.c:214)
Provisioning Phase
In the provisioning phase we act as an Application Provider and create a new Data Reporting Provisioning Session and a Data Reporting Configuration. This is done by sending POST requests via Insomnia to the DCAF.
Creating a new Data Reporting Provisioning Session
To create a new Data Reporting Provisioning Session navigate to the R1 - Data Reporting Provisioning Session folder in the Insomnia workspace and select the Create a new Data Reporting Provisioning Session. Adjust the body of the request with the parameters you like to use or use the predefined ones. Then Send the request.
The DCAF returns the location of the created resource in the location header of the HTTP response. An After-Response script will automatically save the provisioning session id in the corresponding environment variable:
const response = insomnia.response.json();
const provisioningSessionId = response.provisioningSessionId;
insomnia.environment.set("provisioning_session_id", provisioningSessionId);
Creating a new Data Reporting Configuration
Next we create a new Data Reporting Configuration. Navigate to the R1 - Data Reporting Configuration folder in the Insomnia workspace and select the Create a new Data Reporting Configuration POST request. Send the request after adjusting the body as desired.
Again, an After-Response script will automatically save the data reporting configuration id in the corresponding environment variable:
const response = insomnia.response.json();
const dataReportingConfigurationId = response.dataReportingConfigurationId;
insomnia.environment.set("data_reporting_configuration_id", dataReportingConfigurationId);
Event Subscription Phase
In the event subscription phase we register for events that we are interested in. This is done by sending POST requests as an Application Provider to the DCAF.
For that reason, navigate to the R6 - Event Subscription folder in the Insomnia workspace and select the Creates a new Individual Application Event Exposure Subscription resource option.
As the port of the server that is receiving the event notifications is dynamic we need to adjust the notifUri in the request body. Navigate to the notifications folder located in rt-data-collection-application-function/docker/local/logs. The active log file will contain a line like this: "0.0.0.0:41875". Copy the port number (in our example the port is set to 41875) and replace the existing port in the notifUri field of the request body. For instance:
"notifUri": "http://h2-server:41875/dcaf/notification/handler",
Send the request after adjusting the remaining fields of the body as desired.
Again, an After-Response script will handle the response and save the event subscription id in the corresponding environment variable if the response code is set to 200:
const locationHeader = insomnia.response.headers.find(header => header.key === 'location');
insomnia.test('Check if status is 200', () => {
insomnia.expect(locationHeader).to.not.be.empty;
});
if (locationHeader) {
const uuid = locationHeader.value.split('/').pop();
if (uuid) {
insomnia.environment.set('event_exposure_subscription_id', uuid);
}
}
Data Reporting Phase
In the data reporting phase we take the role of the user equipment (UE) and create a data reporting session and then send data reports.
Creating a new Data Reporting Session
To create a new data reporting session navigate to the R2 - Data Reporting Session folder in the Insomnia workspace and select Create a new Data Reporting Session. Send the request after adjusting the body parameters as desired.
Again, an After-Response script will handle the response and save the data reporting session id in the corresponding environment variable:
const response = insomnia.response.json();
const dataReportingSessionId = response.sessionId;
insomnia.environment.set("data_reporting_session_id", dataReportingSessionId);
Submitting a communications report
The final step is to submit a communications report. For that reason, navigate to the R2 - Data Reporting folder and select Submit Communications Report. Adjust the body parameters as desired and send the request.
Checking the reports
If everything went well, you should see the reports in the log file located in rt-data-collection-application-function/docker/local/logs/notifications. An example report looks like this:
{
"headers": {
":method": "POST",
":scheme": "http",
":authority": "h2-server:34117",
":path": "/dcaf/notification/handler",
"accept": "*/*",
"content-type": "application/json",
"content-length": "340"
},
"body": {
"notifId": "5g-mag-notification-id",
"eventNotifs": [
{
"event": "UE_COMM",
"timeStamp": "2025-03-25T13:00:44Z",
"ueCommInfos": [
{
"appId": "5G-MAGAppID",
"comms": [
{
"startTime": "2025-02-05T14:28:00Z",
"endTime": "2025-02-05T14:29:00Z",
"ulVol": 1000,
"dlVol": 2000
}
]
}
]
}
]
}
}
End Data Reporting Provisioning Session
In this tutorial we do not destroy the sessions so steps 18 - 21 from the above diagram are not executed.
