Building and using XR Player on Android

This guide covers compiling the XR player sample Unity project for Android and configuring it with specific glTF content.

This section assumes adb is installed on the machine, and an Android device with developer options and USB debugging enabled is connected.

The project requires Unity 3D 2022.3 with both Android and iOS support modules installed.

While this guide assumes a Windows environment with a git-bash terminal (eg. to run shell scripts), the same instructions apply to other platoforms.

The tutorial covers the following steps:

  1. Clone the XR Player unity project
  2. Compile & install media pipeline library and plugins for Android
  3. Build and run the unity project
  4. Configure the XR player sample application
  5. Launch the player

1. Clone the XR Player unity project

git clone --recursive https://github.com/5G-MAG/rt-xr-unity-player.git

Note: –recursive is required to get all submodules checked out.

2. Build and install media pipelines

Clone and install the source code

git clone git@github.com:5G-MAG/rt-xr-maf-native.git
cd rt-xr-maf-native

Compile libmaf and media pipeline plugins

compile and install dependencies

Follow these instructions to compile the avpipeline dependencies.

Copy the generated libraries into the avpipeline subproject:

mkdir -p ./rt-xr-maf-native/subprojects/avpipeline/external/avcodec/android/arm64-v8a/lib
cp ./rt-common-shared/avcodec-build/build/ffmpeg/aarch64/lib/*.so ./rt-xr-maf-native/subprojects/avpipeline/external/avcodec/android/arm64-v8a/lib

mkdir -p ./rt-xr-maf-native/subprojects/avpipeline/external/avcodec/android/arm64-v8a/include
cp ./rt-common-shared/avcodec-build/build/ffmpeg/aarch64/include/* ./rt-xr-maf-native/subprojects/avpipeline/external/avcodec/android/arm64-v8a/include

cp ./rt-common-shared/avcodec-build/build/ffmpeg/aarch64/LICENSE ./rt-xr-maf-native/subprojects/avpipeline/external/avcodec/android/arm64-v8a/LICENSE

configure cross compilation configuration

  • Download and install the Android NDK. In the next steps, we assume a Windows x86_64 environment with the Android NDK 28.0.12674087 installed in C:\Users\fivegmag\AppData\Local\Android\Sdk\ndk.
  • Locate the ./rt-xr-maf-native/crossfile/android-arm64-v8a and modify it to point to your local NDK installation, for instance:
    [binaries]
    ar = ['C:\Users\fivegmag\AppData\Local\Android\Sdk\ndk\28.0.12674087\toolchains\llvm\prebuilt\windows-x86_64\bin\llvm-ar']
    c = ['C:\Users\fivegmag\AppData\Local\Android\Sdk\ndk\28.0.12674087\toolchains\llvm\prebuilt\windows-x86_64\bin\aarch64-linux-android28-clang.cmd']
    cpp = ['C:\Users\fivegmag\AppData\Local\Android\Sdk\ndk\28.0.12674087\toolchains\llvm\prebuilt\windows-x86_64\bin\aarch64-linux-android28-clang++.cmd']
    c_ld = ['C:\Users\fivegmag\AppData\Local\Android\Sdk\ndk\28.0.12674087\toolchains\llvm\prebuilt\windows-x86_64\bin\ld.lld']
    cpp_ld = ['C:\Users\fivegmag\AppData\Local\Android\Sdk\ndk\28.0.12674087\toolchains\llvm\prebuilt\windows-x86_64\bin\ld.lld']
    strip = ['C:\Users\fivegmag\AppData\Local\Android\Sdk\ndk\28.0.12674087\toolchains\llvm\prebuilt\windows-x86_64\bin\llvm-strip']


configure and compile the MAF library and media pipeline plugins

  • libmaf and C# bindings are enabled by default.
  • the avpipeline plugin needs explicit configuration, the avcodec_dir must point to a subdirectory of the project where platfomrm specfic dependencies have been copied:
cd rt-xr-maf-native
meson setup --wipe -Davpipeline=true -Davpipeline:avcodec_dir=external/avcodec/android/arm64-v8a build/android/arm64-v8a --cross-file crossfile/android-arm64-v8a
meson compile -C build/android/arm64-v8a

install the media pipeline factory and plugins into the Unity project

Assuming rt-xr-unity-player repository has been cloned in a sibling directory ../rt-xr-unity-player:

export ANDROID_NDK_HOME='/c/Users/fivegmag/AppData/Local/Android/Sdk/ndk/28.0.12674087'
cd rt-xr-maf-native
scripts/install_android.sh ../rt-xr-unity-player/Packages/rt.xr.maf

the script copies the following:

  • all compiled libraries from rt-xr-maf-native/build/android/arm64-v8a/ to rt-xr-unity-player/Packages/rt.xr.maf/bin/android/arm64/
  • C# bindings source code from rt-xr-maf-native/subprojects/maf_csharp/swig/ to rt-xr-unity-player/Packages/rt.xr.maf/maf/swig/
  • avpipeline dependencies from rt-xr-maf-native/subprojects/avpipeline/external/avcodec/android/arm64-v8a/lib/ to rt-xr-unity-player/Packages/rt.xr.maf/dependencies/ffmpeg/7.1/android/arm64 along with the related LICENSE
  • libc++ from $ANDROID_NDK_HOME/toolchains/llvm/prebuilt/$ANDROID_NDK_HOSTNAME/sysroot/usr/lib/aarch64-linux-android/libc++_shared.so to rt-xr-unity-player/Packages/rt.xr.maf/dependencies/libc++/android/arm64

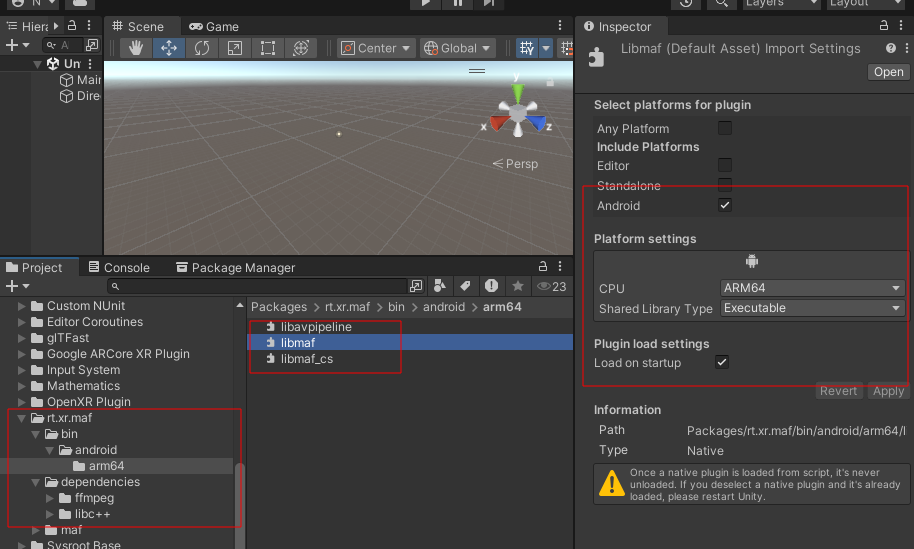

Make sure all the *.so libraries are configured properly in the Unity editor. For each library, in the inspector panel: Configure shared libraries in Unity project

  • Android platform must be checked
  • arm64 must be selected

The configuration is stored in Unity’s *.meta sidecar files and are tracked in the Unity repository. Unity removes the *.meta files if the ressource they reference are not found when opening a project.

3. Build and run the unity project

Open the rt-xr-unity-player directory as an existing project from Unity Hub. Then in the Unity Editor:

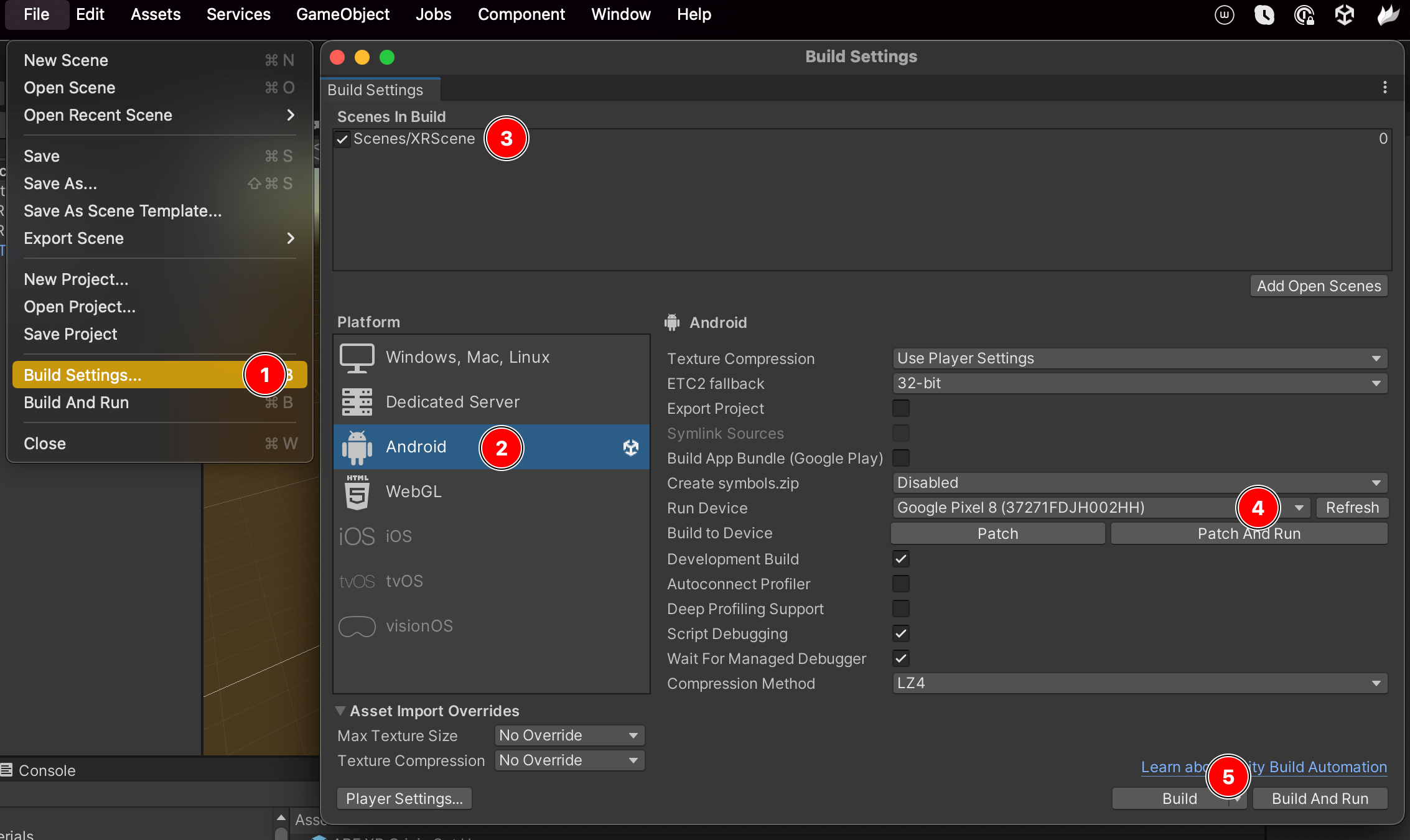

Build the Unity project for Android

  1. Locate the File > Build Settings menu
  2. Make sure that Android is the selected platform, Switch Platform if needed
  3. Ensure that XRScene is the default scene.
  4. Select the device on which the application will be installed.
  5. Hit Build and Run to compile the project and install it on the mobile device

4. Configure the XR player sample application

Clone the rt-xr-content repository. This requires git lfs to be installed on your system.

git clone https://github.com/5G-MAG/rt-xr-content.git

Push glTF content to the phone:

cd rt-xr-content
adb push ./awards /storage/emulated/0/Android/data/com.fivegmag.rtxrplayer/files/awards

Create a file named ‘Paths’ listing gltf documents to be exposed in the player, one per line:

/storage/emulated/0/Android/data/com.fivegmag.rtxrplayer/files/awards/awards.gltf
/storage/emulated/0/Android/data/com.fivegmag.rtxrplayer/files/awards/awards_floor_anchoring.gltf

Upload the ‘Paths’ file to the Android device:

adb push ./Paths /storage/emulated/0/Android/data/com.fivegmag.rtxrplayer/files/Paths

5. Launch the player

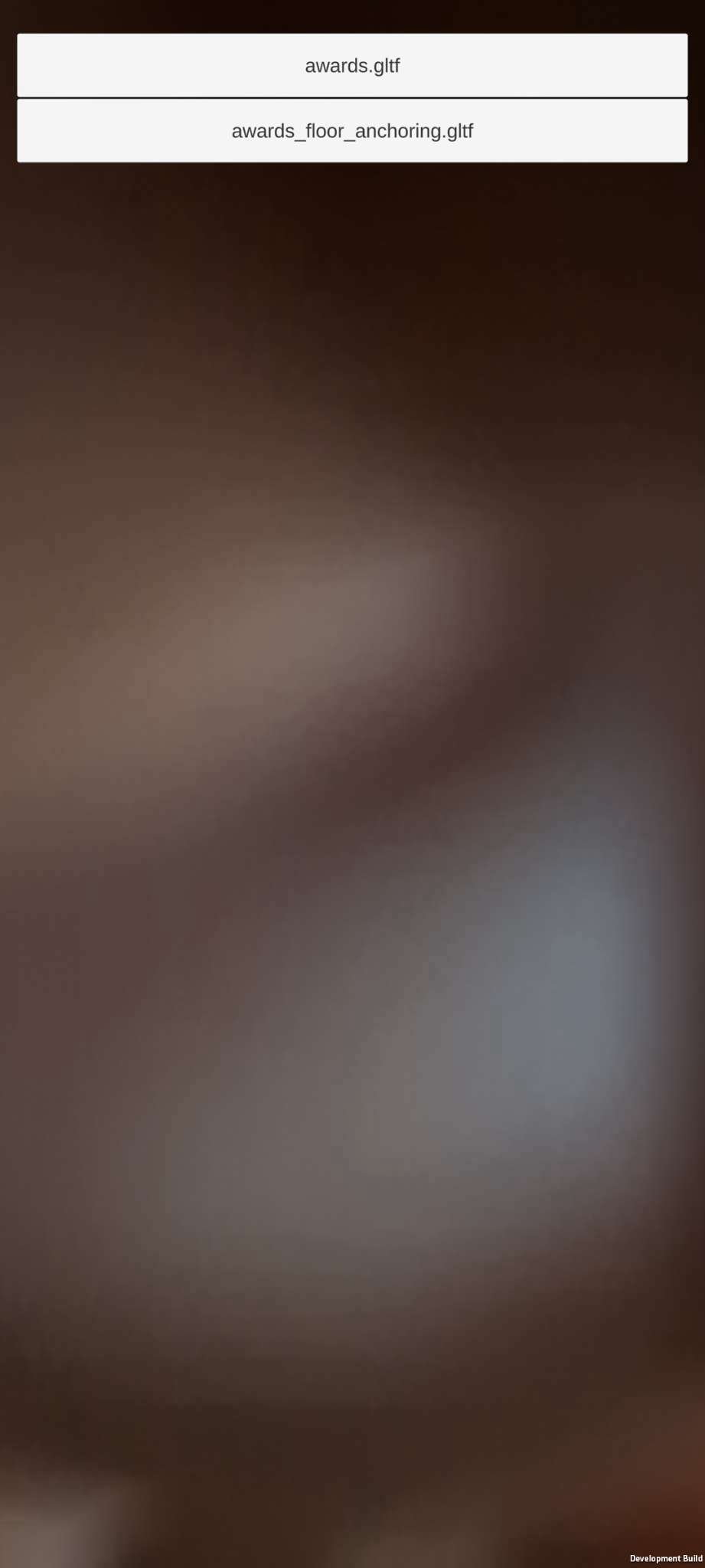

Locate and launch the player. A menu to select scenes in the configured content will be listed by the player at startup.

android icon

content selection menu
